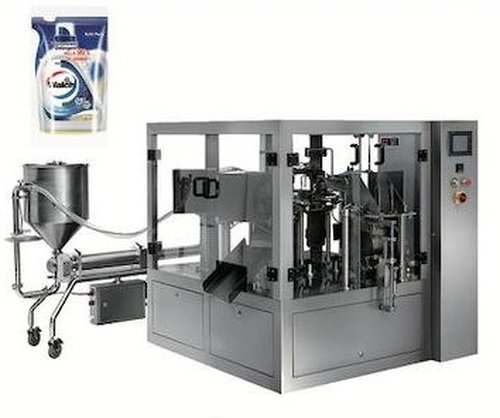

Pneumatic Pump Filling Give Bag Type Packing Machine

Model: GS033

Voltage / Frequency: 220V, 50/60Hz

Power: 2.5 kW

Bag Type: Center seal bag, Three-side seal bag, Four-side seal bag, Self-standing bag, Handbag, Spout bag, Zipper bag, Compound bag, etc.

Bag Size:

• Width: 70–200 mm / 100–260 mm / 100–310 mm

• Length: 50–350 mm

Filling Range: 10–1000 g / 20–2500 g

Packing Speed: 40–60 bags/min (speed depends on filling quantity)

Filling Accuracy: ≤ ±1%

Work Method: Giving bag → Coding → Opening → Filling → Heat sealing → Forming and product output

Applicable Scope:

• Weight filling: Block materials (beans, cereal, candy, nuts, biscuits, etc.)

• Measuring cup filling: Granular materials (sugar, seeds, chemicals, capsules, fertilizer, etc.)

• Spiral filling: Powder products (milk powder, glucose, seasoning, fine sugar, chemicals, etc.)

• Pneumatic piston filling: Liquid / Paste (detergent, rice wine, soy sauce, juice, tomato sauce, jam, chili sauce, bean paste, etc.)

• Other bagging materials

Machine Weight: 850 kg

Machine Dimensions: 220 × 160 × 160 cm

Customization: Accept customized configurations
